CYLINDRICAL WORKHOLDING

Cylindrical / Parallel Axis Workholding


WE OFFER SOLUTIONS FOR ALL CYLINDRICAL GEAR MANUFACTURING PROCESSES

By specializing in gear related workholding, GRT truly understands the workholding requirements for all different cylindrical gear manufacturing processes, such as:

Hobbing gashing Skiving Grinding Honing Shaping Shaving Inspection

All of the above processes required special considerations due to the varying forces,clearances required and understanding the dynamic machine motions of the latest CNC Machines. GRT has years of experience designing custom workholding for all of these processes.


Tool holders and mountings

With our large data base we are able to provide almost any tool holder for a gear manufacturing machine. If you need a standard or custom:

Hob arbor Shaper cutter ADAPTER Grinding wheel adapter

We can provide this to you with the highest quality. We also carry some standard Hob Arbors and Shaper Cutter Adapters in stock. Please contact us with your needs


LARGE GEAR FIXTURes

We are experienced in providing flexible fixtures for large gear machines up to 3 meters and possibly larger. Depending on the customers requirements the fixtures can be manufactured from welded steel plates or from highly durable cast iron. We have the ability to design and provide custom cast segments for high force applications. All fixtures are stress relieved and ground as a set for the highest accuracy and stability.



High Production Hydraulic Expansion Workholding for Hobbing Pinions

High Production Hydraulic Expansion Workholding for Hobbing Pinions

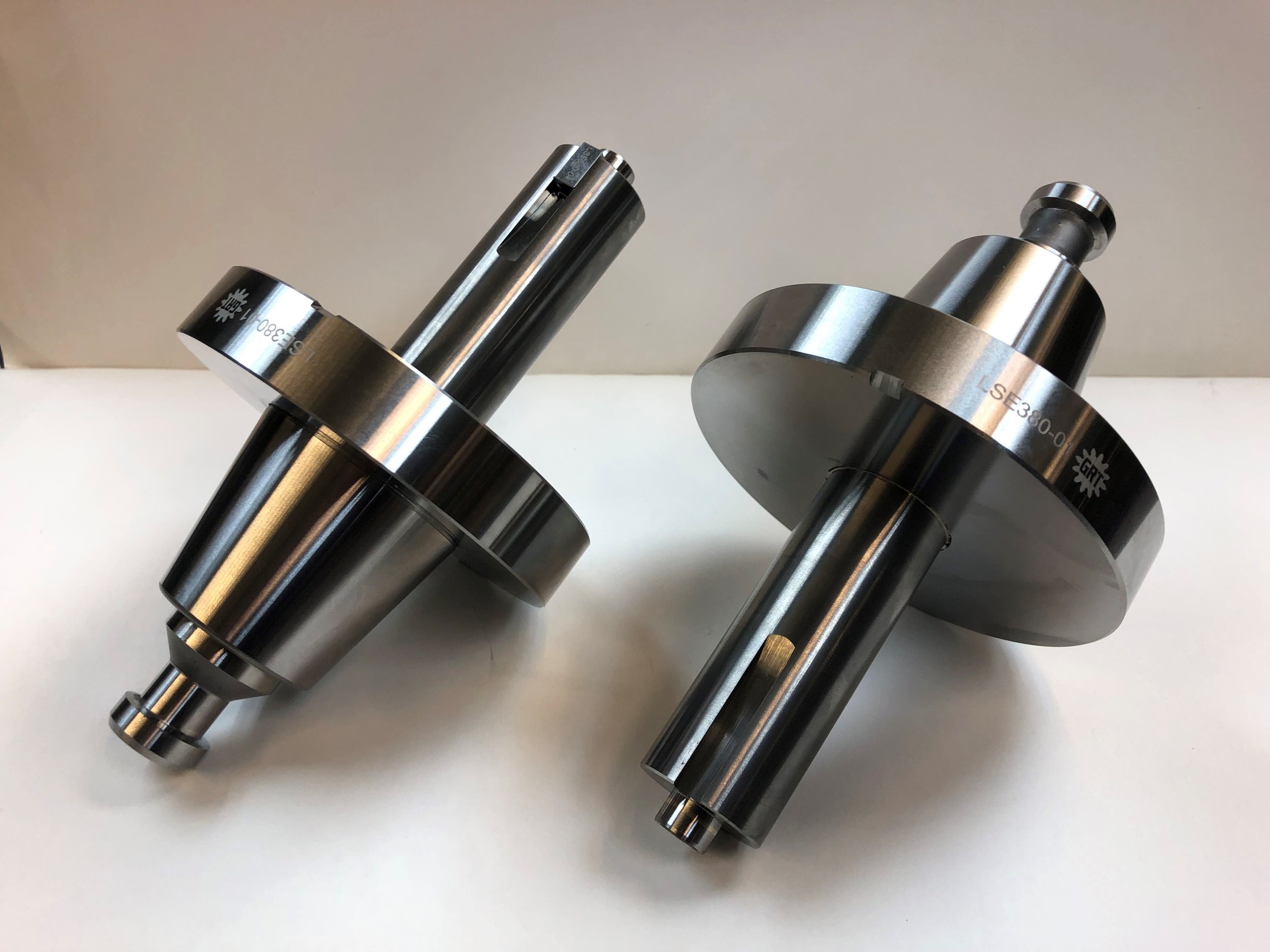

High Stiffness Shaper Cutter Adapter with Carbide Shanks

High Stiffness Shaper Cutter Adapter with Carbide Shanks

Segmented Fixture on a Large Gear Gashing Machine for Pitch and Yaw Bearings

Segmented Fixture on a Large Gear Gashing Machine for Pitch and Yaw Bearings

Shaping Workholding for Internal Ring Gear

Shaping Workholding for Internal Ring Gear
